| Place of Origin | Hebei,China |
| Certification | ISO9001 |

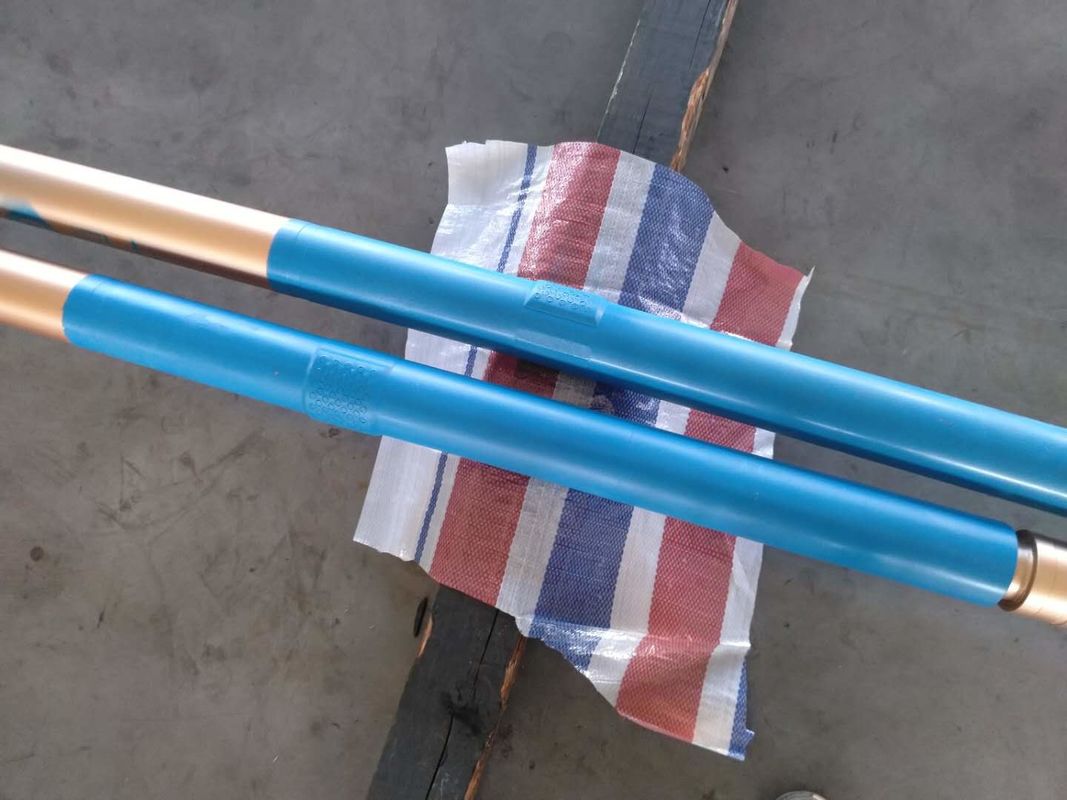

2-1/8" (54mm) Down Hole Motor for Sidetracking Operation
Sidetracking Wells is drilling a hole around unrecoverable junk, such as a stuck drill string ( Check also Pipe Sticking problem); it is necessary to place a cement plug above the junk at a required depth that will allow sufficient distance to kick off the cement plug and drill around, bypassing, the original hole and junk (junk mill). High-density cement plugs are usually recommended for this application.
In other words, oil/ Gas Wells may require sidetracking to re-drill the well to a new target, maybe to pass a fish or because of hole problems. To sidetrack any Oil / Gas well, you must develop a lateral force to allow the drilling bit to cut on the side of the hole. The drilling BHA geometry will provide this force. Our downhole motor will be your good choice.
Availability of our small size downhole motor:
| Downhole Motor Specification | OD | Bit Size | Connection | Lobe | Stage | Flow Rate | RPM | Working Pressure Drop | Output Toque | Max Pressure Drop | Max Toque | Operating WOB | Max WOB | Output Power | |||||||||||
| mm | In | mm | In | Top | Bottom | Lpm | Gpm | MPa | Psi | N.m | lb-ft | MPa | Psi | N.m | lb-ft | kN | lb | kN | lb | KW | HP | ||||
| 5LZ54×7.0-4-420 | 54 | 2-1/8 | 60~89 | 2-3/8~3-1/2 | 1-1/2REG | 1-1/2REG | 5:6 | 4 | 90~180 | 24~48 | 170~340 | 3.2 | 466 | 218 | 162 | 4.52 | 655 | 309 | 230 | 4 | 880 | 8 | 1760 | 10 | 14 |
